 Total Piping Solutions Coupling L is a unique alternative to a traditional flange connection. This coupling is manufactured according to TÜV rules and offer several advantages compare to tradtional flange connections:
- Low weight
- Rapid opening and closing
- Requires less space
- One purchase only
   Working pressure for Total Piping Solutions Coupling L | Tube OD, mm | Working pressure at 20ºC (68ºF) | 100ºC (210ºF)
bar | 260ºC (500ºF)
bar | Service load according to

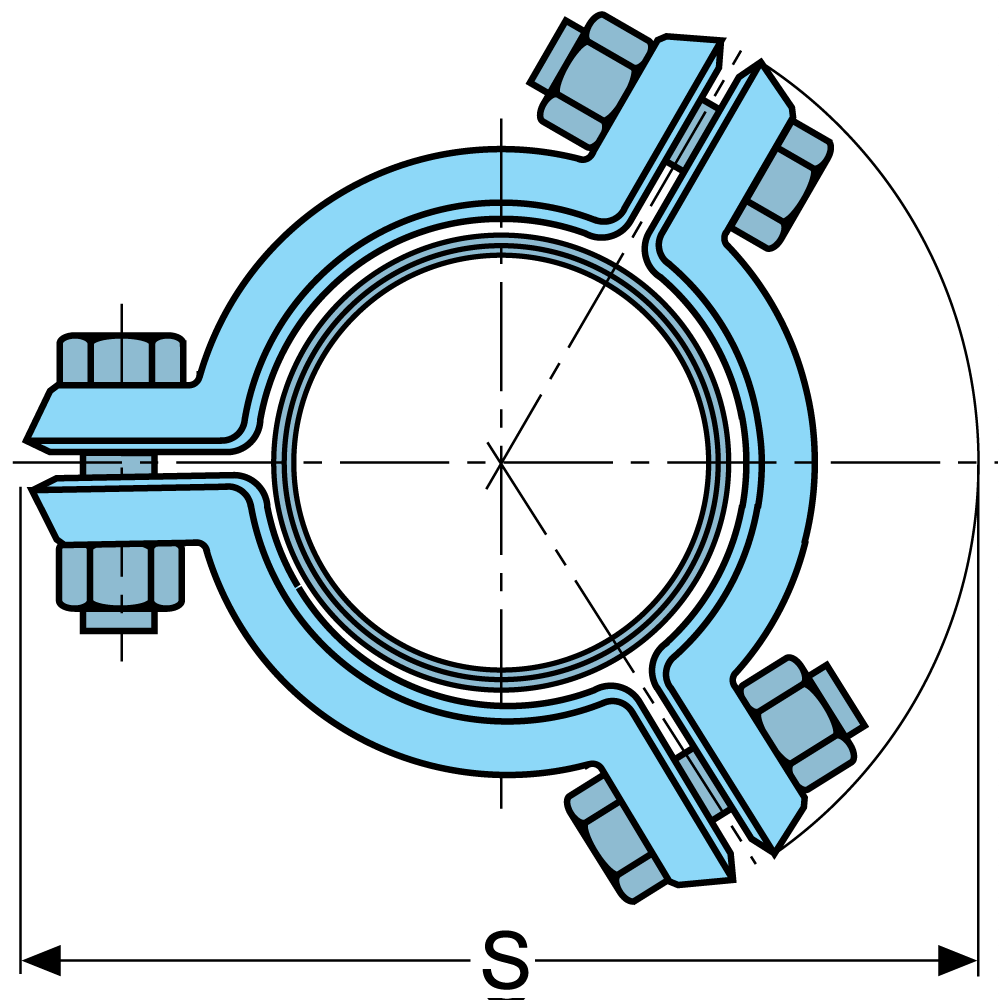

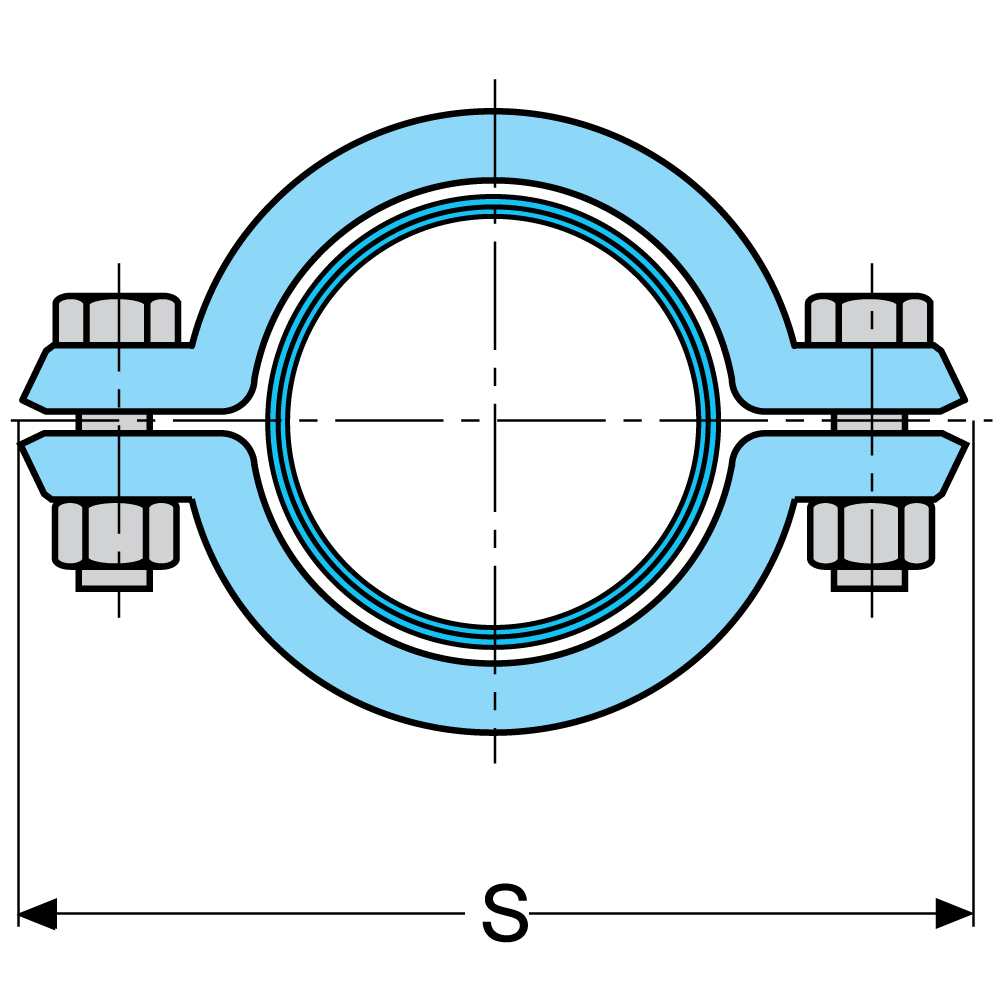

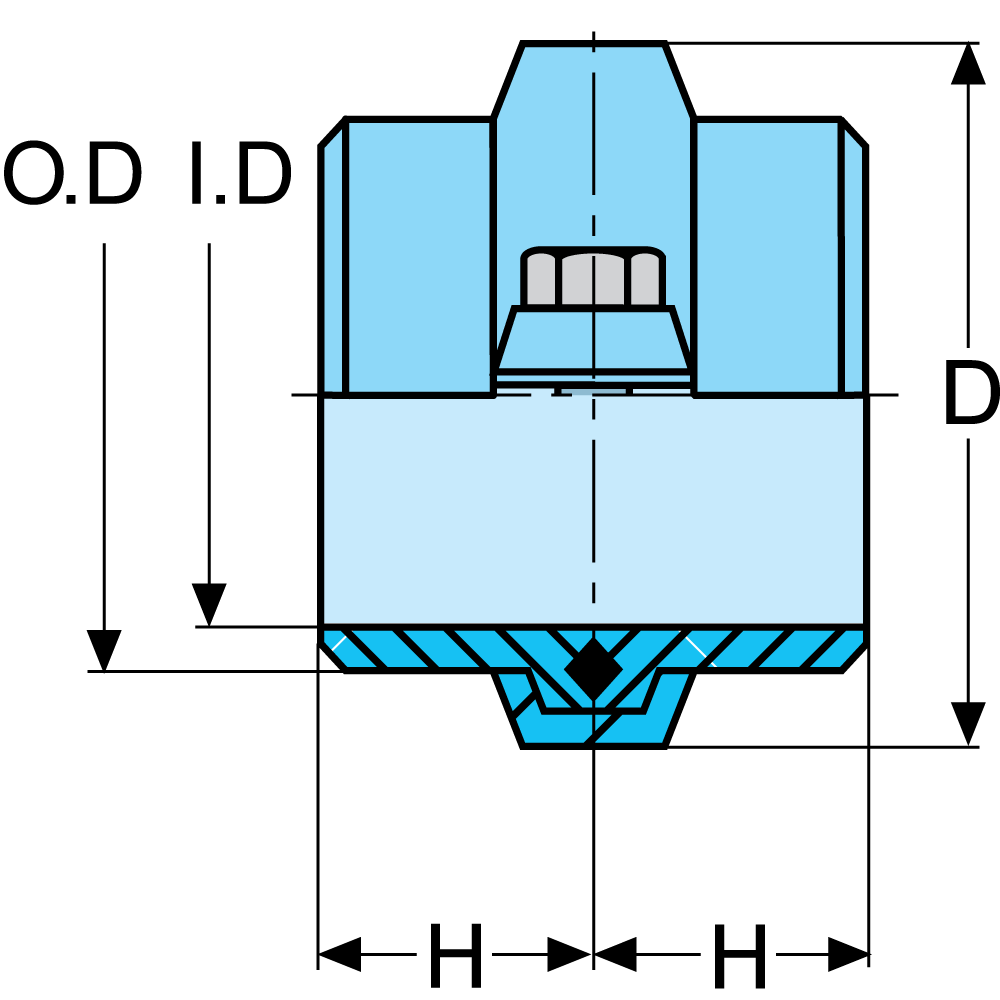

DIN 2401 | | 26.9-60.3 | 40 | 31 | 25 | PN 40 | | 76.1-133 | 25 | 19 | 15 | PN 25 | | 139.7-255 | 16 | 13 | 10 | PN 16 | Materials The flanges of Total Piping Solutions Coupling L are made from ASTM 316L steel. Clamps, bolts, nuts and locking rings are made from ASTM 304; bigger sizes in carbon steel. Gaskets are available in Nitril, Teflon or Viton. Sizes | Pipe | | Sizes | Weight | Bolt and nut | Available with a) | Blind flanges | ISO
mm | ANSI
in. | OD
mm | ID
mm | S
mm | D
mm | H
mm | kg/pce | mm | S-N | S-T | | 26.9 x 2.3A
30 x 2 A
33.7 x 2.6A
42.4 x 2.6A | 3/4 Sch 10s
1 Sch 10s
1 1/4 Sch 10s | 26.9
31
34.2
42.4 | 22.3
26
28.5
37.2 | 72.5
72
80.5
92.5 | 42
42
48
60 | 20
20
25
25 | 0.190
0.160
0.240
0.350 | 6 x 25
6 x 25
6 x 30
6 x 30 | ●
●
●
● | ●
●
●
● | ●
●
● | 44.5 x 2.9A
48.3 x 2.6A
54 x 2 A
57 x 2.9A | 1 1/2 Sch 10s | 46
49
54
58 | 38.7
43.1
50
51.2 | 82
108
116
116 | 60
67
76
76 | 25
30
30
30 | 0.340
0.500
0.620
0.600 | 6 x 30
8 x 40
8 x 40
8 x 40 | ●
●
●
● | ●
●
●
● | ● | 60.3 x 2.9A
76.1 x 2.9A
84 x 2 A
88.9 x 3.6A | 2 Sch 10s
3 Sch 10s | 60.3
76.1
84
89 | 54.5
70.3
80
81.7 | 131.5
148
162
162 | 84
100
109
109 | 30
30
30
30 | 0.850
1.000
1.100
1.100 | 10 x 45
10 x 45
10 x 50
10 x 50 | ●
●
●
● | ●
●
●
● | ●
● | 104 x 2 A
108 x 4 A
114.3 x 3.6A
129 x 2 A | 4 Sch 10s | 104
109
114.3
129 | 100
100
107.1
125 | 188
188
204
221 | 131
131
142
159 | 30
30
35
35 | 1.600
1.700
2.300
2.400 | 12 x 60
12 x 60
12 x 60
12 x 60 | ●
●
●
● | ● | ● | 139.7 x 3.6B
154 x 2 B
159 x 4.5B
168.3 x 4 B | 5 Sch 10s
6 Sch 10s | 141.3
154
160
170 | 132.5
150
150
160.3 | 230.5
251
251
266.5 | 167.5
188
188
198 | 35
35
35
35 | 2.600
3.000
3.200
3.700 | 12 x 60
12 x 60
12 x 60
12 x 60 | ●
●
●
● | | | Examples of codes used when ordering: Full set of Total Piping Solutions Coupling L including gasket and stainless steel clamps: - With Teflon gasket: FCL-316L-30-S-T
- With Nitril gasket: FCL-316L-30-S-N
