Total Piping Solutions Steels leading Orifice Flanges manufacturers, founded in 1998. We pride ourselves on being at the forefront of innovation in both product lines and after sales services. This is why we will constantly upgrade our products and services to meet market expectations and demands. We are reputed as an excellent quality Orifice Flanges supplier in the industry. American iron and steel institute (AISI) use three numbers to clarify different types of steel which are 200, 300, 400 and 600 series. Total Piping Solutions Steels also manufacture & specialized into Pipe/Plates such as A106 GR. B Carbon Steel Seamless Pipes, A53 GR. B, API 5L GR. B Seamless Pipes, API 5L Gr B ERW Pipes, A333 GR. 3/6 Pipes & Alloy Steel Pipes ASTM A335 GR P5 | GR P9 | GR P11 | GR P22 | GR P91.
Size: 1/2" NB TO 24" NB. Class : 150#, 300#, 400 #, 600#, 900#, 1500# & 2500# Flanges available with NACE MR 01-75
Orifice Flanges In Carbon, Alloy and Stainless 300 LB through 2500 LB Raised Face or Ring Joint
Orifice Flange Unions are designed and manufactured to AGA, ASME, and ISA recommendations. We offer the following types:
Slip on threaded ring joint corner tap weld neck orifice flanges.
Raised Face weld neck orifice flanges.
Raised Face slip-on orifice flange manufacturers.
Ring-Type joint weld neck orifice flanges.
Corner tap orifice flanges
Materials used to produce Orifice flanges:
Aluminum
Brass
Bronze
Cast iron
Stainless Steel
Carbon Steel
Alloy
Nickel
Copper etc

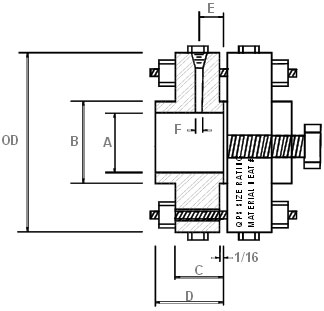

Dimensions
300# RFS0 ORIFICE FLANGE UNION
MATERIALS: A105 (C.S.) AND A182 (S.S.)
Other materials and schedules available
HARDWARE:
Stud Bolts:A193 Gr. B7 Steel
Hex Nuts:A194 Gr. 2H Steel
Jackscrew:C1018 Hardened Square Head Screws
Pipe Plugs:Hex Head, Forged Steel
Ring Gaskets:C4430 Non-Asbestos
Manufactured to meet A.G.A Report #3-2 A.P.I 14.3 ASME SPECIFICATIONS Orifice Plates sold seperate
Flanges of welding neck, socket welding, threaded, blind, slip on, lap joint are in accordance with ANSI B 16.5 from 1/2" to 24" and classes 150 to 2500 (complete range).
Flanges from 26" to 48" and classes 150 to 900 lbs are in accordance with MSS SP 44 standard.
Flanges with long welding neck are from classes 150 to 2500 lbs and sizes from 1/2" to 24".
Orifice flanges from 1" to 24" and from 300 to 2500 lbs are in accordance with ANSI B 16.36.
Blind, slip on, welding neck flanges are from 6 Bar to 40 Bar in accordance with DIN.
Flanges from 1/2" to 24" and up to 450 lbs are in accordance with BS10 Table D & Table E, BS Table F & Table H, BS Table J & Table K.
Flanges from 2kg to 210 kg are in accordance with JIS.
Flanges according to API 605/ASME B16.47.
Depending on special purposes, flanges can be manufactured in different shapes and sizes
Orifice Flanges packing will be according to international standard in bundles strapped by strips then into containers to avoid any damage.
Delivery: Within 10-25 days or asap if we have enough stock
Types of Packaging:
- Bundles (hexagonal)
- Wooden Boxes
- Crates (steel/wooden)
- Packaging for Orifice Flanges as per customer's requirements
Special Features:
- Each bundle covered with plastic for protection against extreme weather.
- End of Orifice Flanges protected by plastic caps.
- Bundles strapped with plastic strips.
- Each radius of U-Bend tube separated by a separator.
- Packaging list (laminated) placed with box/crate.
Specific Marking and Packaging:
Each item or part has a unique identifier and is specifically packaged to meet the customer’s needs... We adapt to your request.
We export Orifice Flanges to Iran, Iraq, Italy, UAE, Bahrain, Indonesia, Australia, Kuwait, Saudi Arabia, South Africa, Germany, UK, Denmark, Canada, USA, Peru, Brazil, Nizeria, Mexico, Venezuela (Latin America), South America, Russia, kazakhstan etc.
Orifice Flanges Application:
Application Industry:
Applications Typical applications include:
Processing plant for sulphuric, phosphoric and acetic acids
With years of experience with companies and projects around the world, Total Piping Solutions Steels brings world-class expertise to materials acquisition.
Total Piping Solutions Steels ships directly from the mill to the buyer, eliminating the cost of stocking and providing significant savings to its customers.
ISO 9001:2008 certified & Govt. of India recognised export house
All of Total Piping Solutions’s manufacturers are ISO certified and all linepipe and plate providers are API certified.
Orifice Flanges Inventory- We have wide range of sizes and grades inventory
Specialized in Pipe/Tube/Tubing & Sheet/Plate
We supply Orifice Flanges in small & large quantity
